InfoModal Welcome Carousel Configuration Guide

A WLA merchant can have a "Welcome Carousel" applied to their app which can have custom walkthroughs/links/how to's that will show the user on first load/open of the applicable merchants WLA.

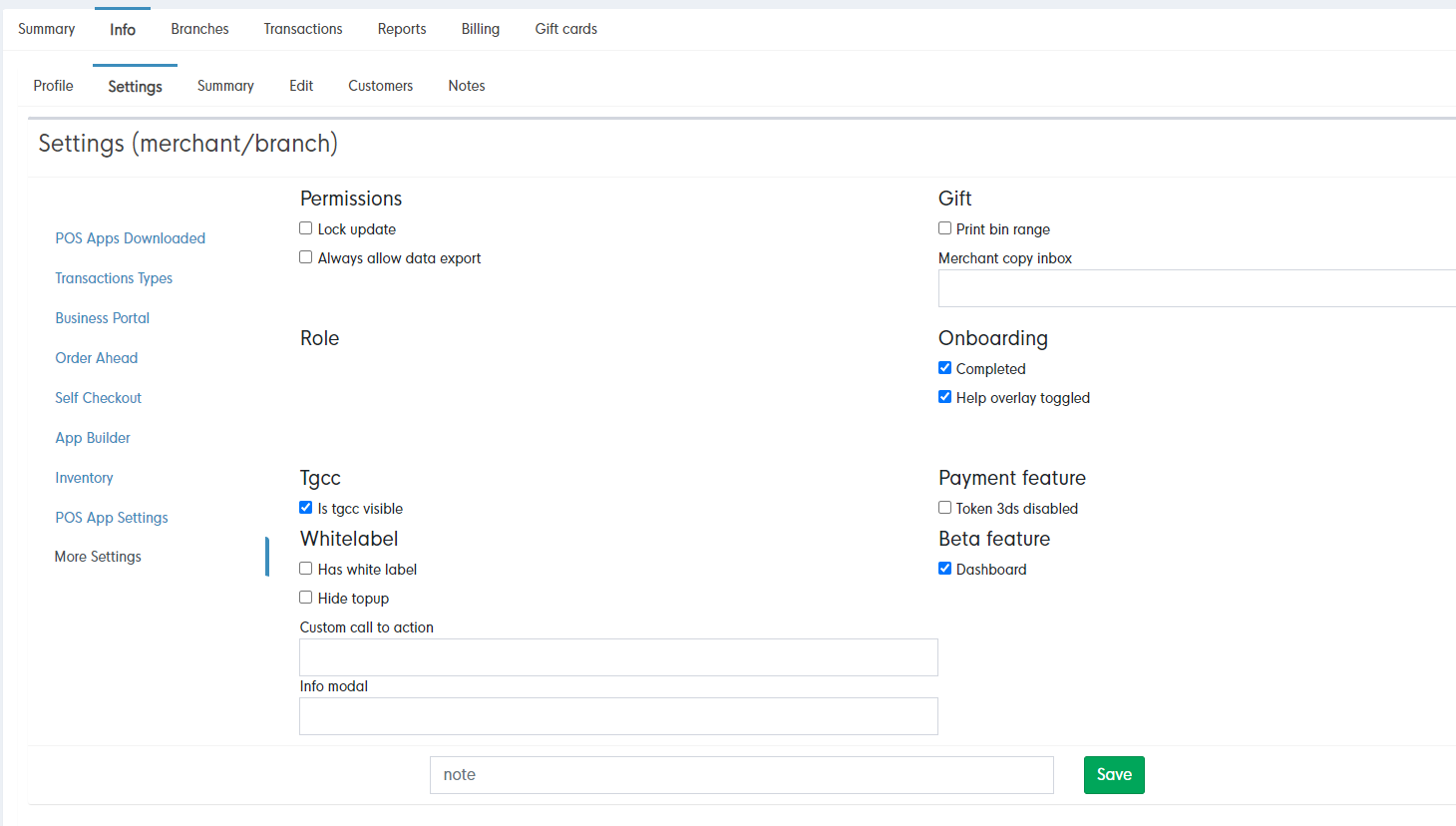

To add this to a WLA you need to populate the "Info modal" box within the admin portal under Info>Settings>More Settings:



You will then need to add a long chain of code that contains all text, image and hyperlinks in it that looks like the following:

[

{         "image": "https://images.squarespace-cdn.com/content/v1/5ef3c6a62f74c424b517f199/e319d854-acf5-4075-943a-97b2cd0acaae/MULTI_Lagoonfest.jpg",

        "title": "Welcome to the Lagoonfest TX App!",

        "text": "Please take a moment to swipe through these quick instructions on how to activate your tickets & setup your app",

        "cta": {             "label": "Next",             "link": "?infoModal=2"         }     },

{        "image": "https://loylap.s3.eu-west-1.amazonaws.com/lagoonfest/Afbeelding1.jpg",                       "title": "Activate Your Tickets",

         "text": "Your tickets are connected to this app. Show your QR at entry to identify & validate your tickets",

         "cta": {             "label": "Learn more here",             "link": "https://facilipay.hubspotpagebuilder.com/lagoonfest-app-how-to-0-0"         }     }

]



As you can see, each slide/page of the infomodal is made up of 4 components:

1. Image - Image will need to be a publicly hosted URL

2. Title - can be any text

3. Text - can be any text

4. Call To Action (cta) - Contains to more: "label" and "link"

All the above should be contained within it's own braces and separated by a comma. Blank Template:

    {
        "image": "",
        "title": "",
        "text": "",
        "cta": {"label": "","link": ""}
    }

The structure of the entire code should be contained within square brackets as well so this should be formatted as such:

[{PAGE1},{PAGE2},{PAGE3}]



Handy app controls to use for call to action links:

?infoModal=X - Can link to next page so should increase by 1 if not required to link externally. X being page of infomodal.
